High pressure technology for waterjet cutting equipment
Muototerä offers high-pressure pumps from KMT Waterjet and BFT GmbH, guaranteeing exceptional quality and reliability for demanding cutting tasks. Our pumps ensure consistent performance, maintaining the precision of your waterjet systems under the toughest conditions. Beyond just supplying pumps, we place strong emphasis on after-sales support, including a comprehensive range of spare parts and expert service. Whether you need maintenance, upgrades, or parts replacement, our dedicated team is here to keep your operations running smoothly and efficiently, ensuring long-term performance and peace of mind.
Other waterjet cutting products
High-Pressure Pumps: Power and Precision from 2000 to 6200 Bar
Our high-pressure pump porfolio from KMT and BFT, deliver exceptional power and precision, ranging from 2,000 to 6,200 bar. We offer two main types of pumps to meet your cutting needs and we will recommend you the correct pump depending on your needs and requirements:
- Intensifier Pumps: Ideal for high-pressure applications, these pumps ensure consistent and reliable performance for demanding tasks.
- Crankshaft Pumps: Known for their durability and efficiency, crankshaft pumps provide a robust solution for various cutting operations.
Built with high-quality components and IoT capabilities, the pumps ensure long-lasting performance and optimal efficiency, seamlessly integrating with all FinJet waterjet cutting machines.
Explore the models below to find the perfect fit for your needs. Contact us for more information or request for a quote.
3800 BAR

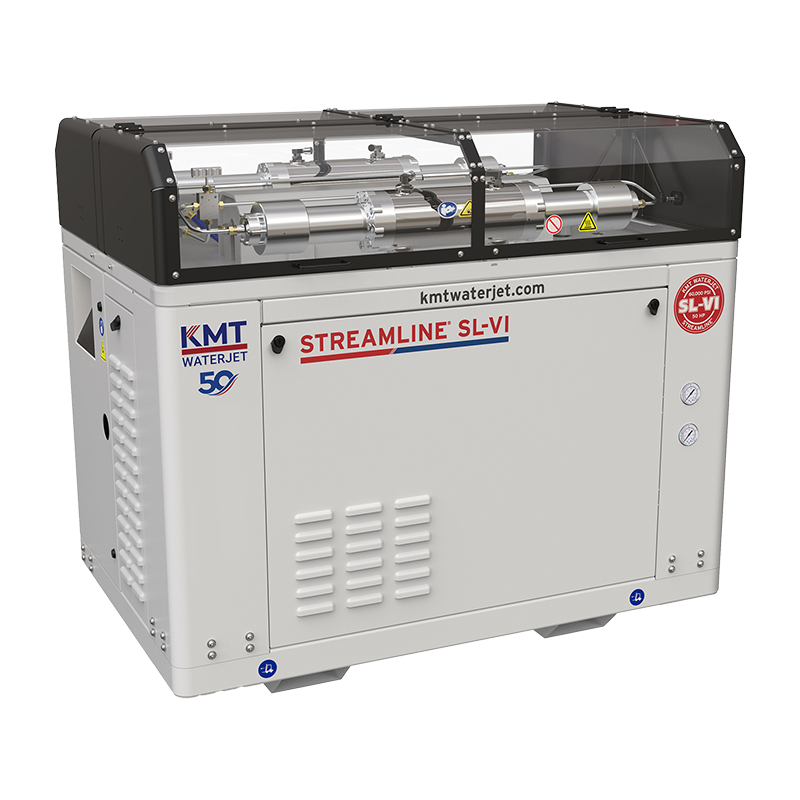

High-Pressure Pump KMT STREAMLINE VI STD 50 hp
- Electric power: 37 kW / 50 hp
- Pressure range: 500 - 3800 bar
- Max output: 4.3 l/min, accumulator volume: 1L
- Dimensions: 1689 x 1114 x 1477 mm (length, width, height)
- Space requirement: 3.4 x 2.7m with recommended maintenance area
- Weight: 1302 kg
- Max nozzle size: 1 pc 0.35 mm or 2 pcs 0.25 mm
- Fuse recommendation: 80 A slow
3800 BAR
High-Pressure Pump KMT STREAMLINE VI STD 100 hp
- Electric power: 75 kW / 100 hp
- Pressure range: 500 - 3800 bar
- Max output: 7.6 l/min at max pressure
- Accumulator volume: 2L
- Dimensions: 2095 x 1320 x 1508 mm (length, width, height)
- Weight: 2128 kg
- Max nozzle size: 1 pc 0.45 mm or 2 pcs 0.35 mm
- Fuse recommendation: 175 A
3800 BAR

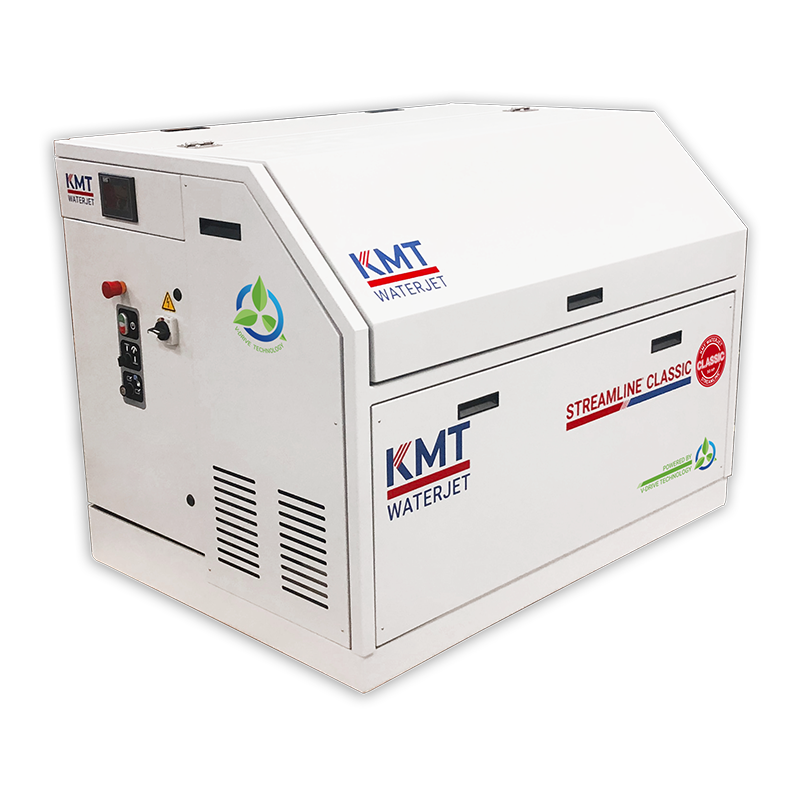

High-Pressure Pump KMT CLASSIC V-DRIVE
- Electric power: 37 kW / 50 hp
- Pressure range: 690 - 3800 bar
- Max output: 3.8 l/min at max pressure
- Dimensions: 1165 x 1575 x 1310 mm (length, width, height)
- Weight: 1225 kg
3800 BAR

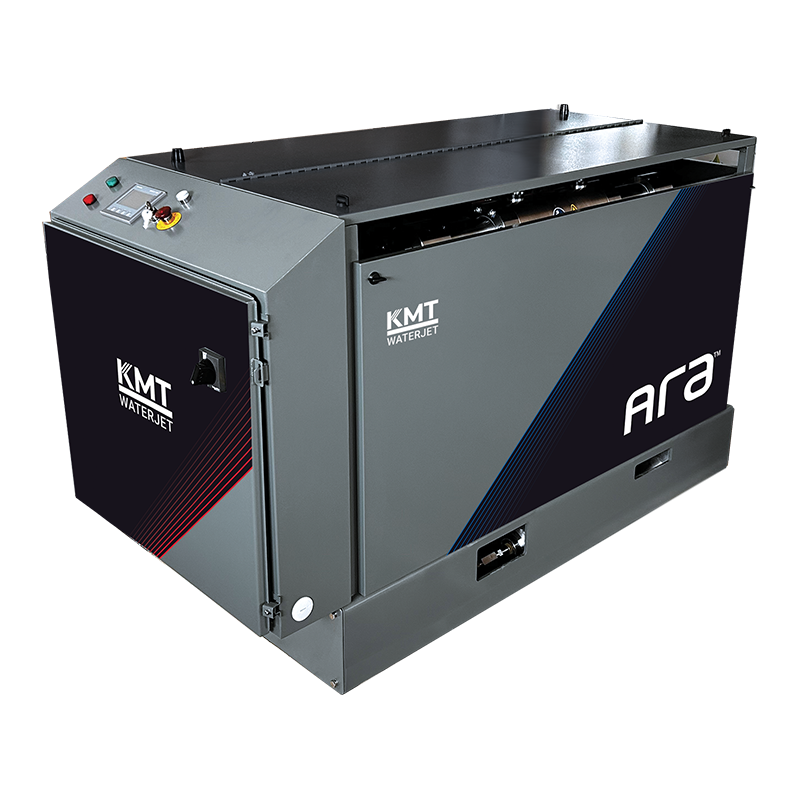

High-Pressure Pump KMT ARA
- Electric power: 37 kW / 50 hp
- Pressure range: 500 - 3800 bar
- Max output: 3.8 l/min at max pressure
- Dimensions: 1935 x 914 x 1194 mm (length, width, height)
- Weight: 1111 kg
4000 BAR

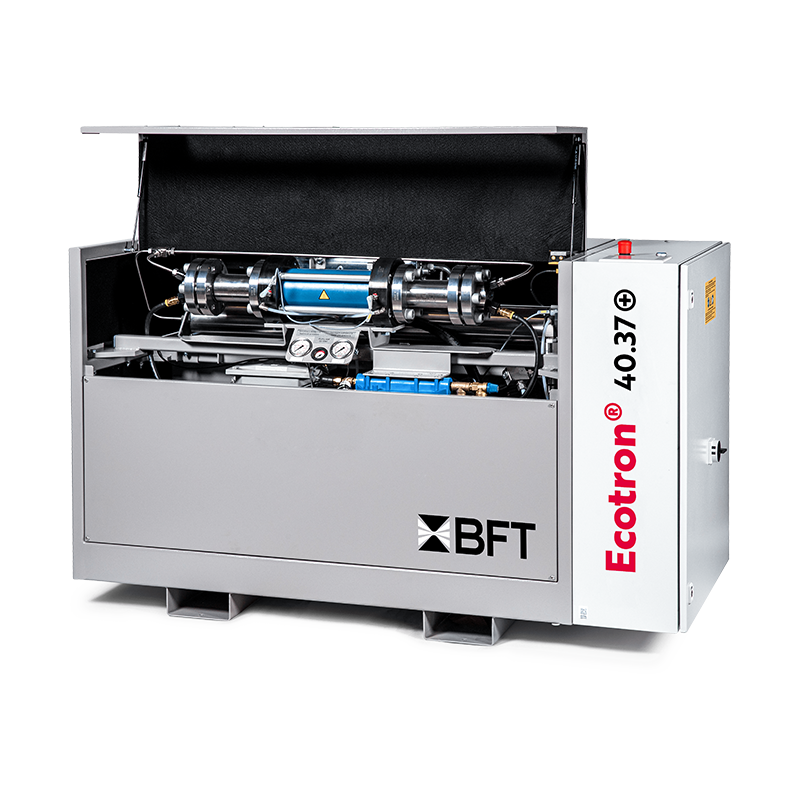

High-Pressure Pump BFT ECOTRON
- Electric power: 11 kW / 15 hp – 45 kW / 60 hp
- Pressure range: 500 - 4000 bar
- Max output: 1.2 – 4.3 l/min
- Dimensions: 800 x 1800 x 1050 mm (length, width, height)
- Weight: 760 - 1100 kg
- Standard water cooling, optional oil-air cooling
4000 BAR

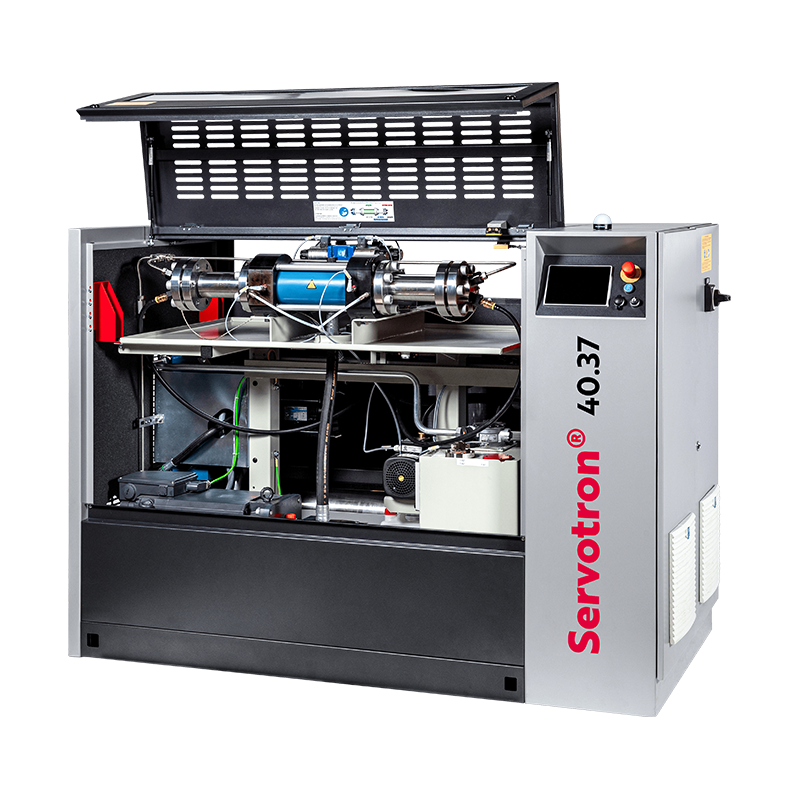

High-Pressure Pump BFT SERVOTRON
- Electric power: 37 kW / 50 hp or 45 kW / 60 hp
- Pressure range: 500 - 4000 bar
- Max output: 3.8 or 4.6 l/min
- Dimensions: 970 x 1400 x 1150 mm (length, width, height)
- Weight: 1160 kg
- Fuse recommendation: 80 A or 100 A
- Standard water cooling, optional oil-air cooling
4000 BAR

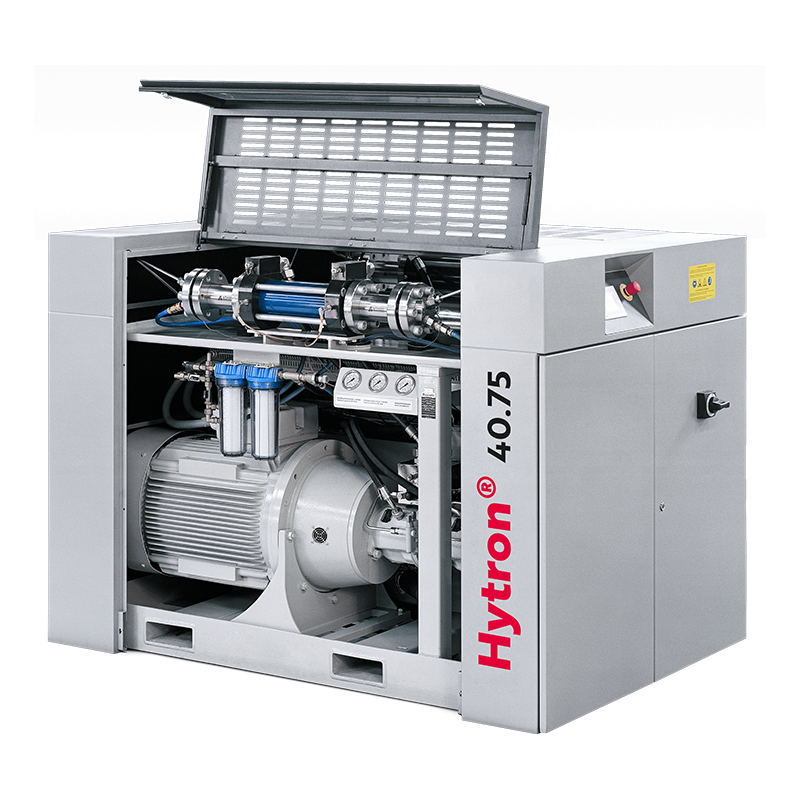

High-Pressure Pump BFT HYTRON – Dual Intensifier
- Electric power: 55 kW / 75 hp or 75 kW / 100 hp
- Pressure range: 500 - 4000 bar
- Max output: 6 or 7.6 l/min
- Dimensions: 950 x 1950 x 1400 mm (length, width, height)
- Weight: 2000 - 2200 kg
- Fuse recommendation: 125 A or 160 A
- Standard water cooling, optional oil-air cooling
4100 BAR
High-Pressure Pump KMT STREAMLINE VI PLUS 50 hp
- Electric power: 37 kW / 50 hp
- Pressure range: 500 - 4100 bar
- Max output: 4.1 l/min, accumulator volume: 2L
- Dimensions: 1689 x 1114 x 1508 mm (length, width, height)
- Space requirement: 3.4 x 2.7m with recommended maintenance area
- Weight: 1179 kg
- Max nozzle size: 1 pc 0.35 mm or 2 pcs 0.25 mm
- Fuse recommendation: 80 A slow
6200 BAR
High-Pressure Pump KMT Pro-III 6200 bar 60 hp
- Electric power: 45 kW / 60 hp
- Requires 125 A knife fuses
- Includes soft starter
- Stepless pressure adjustment via remote control
- Max pressure: 6200 bar
- Max output at max pressure: 2.8 l/min
- Allows usage of 1 x 0.25 mm nozzle at full pressure or 2 x 0.25 mm at 4000 bar
- Dimensions: 2095 x 1320 x 1973 mm (length, width, height)
- Weight: 1973 kg
6200 BAR
High-Pressure Pump KMT Pro-II 6200 bar 125 hp
- Electric power: 93 kW / 125 hp
- Requires 175 A knife fuses
- Includes soft starter
- Stepless pressure adjustment via remote control
- Max pressure: 6200 bar
- Max output: 5.8 l/min
- Supports max 2 x 0.25 mm or 1 x 0.38 mm nozzles
- Dimensions: 2235 x 1500 x 1552 mm (length, width, height)
- Weight: 3107 kg
6000 BAR

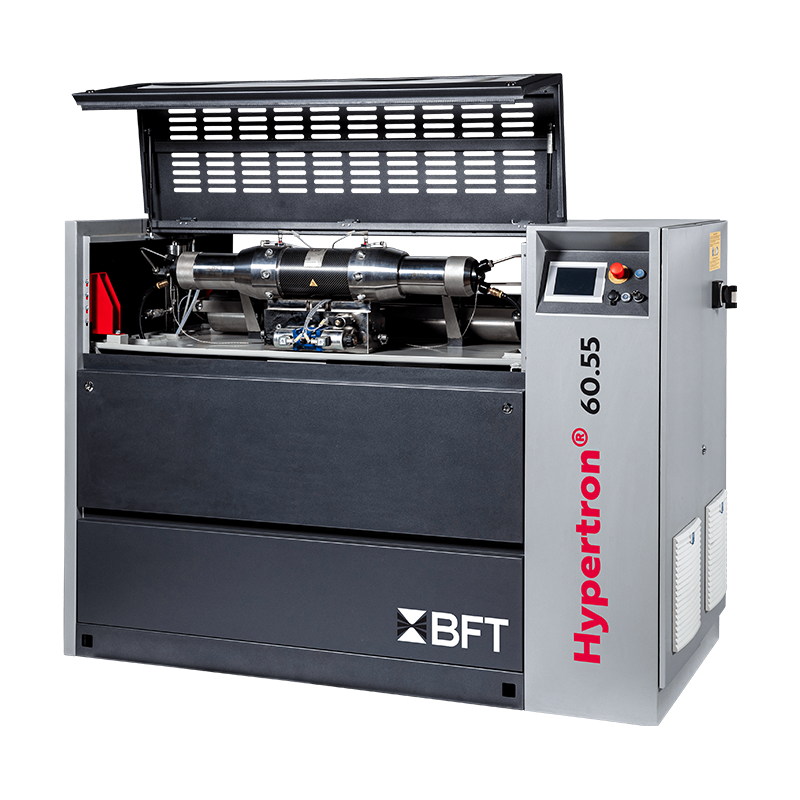

High-Pressure Pump BFT HYPERTRON
- Electric power: 55 kW / 75 hp
- Pressure range: 500 - 6000 bar
- Max output: 3.5 – 4.6 l/min
- Dimensions: 970 x 1950 x 1400 mm (length, width, height)
- Weight: 1420 kg
- Fuse recommendation: 125 A
- Standard water cooling, optional oil-air cooling
3800 BAR

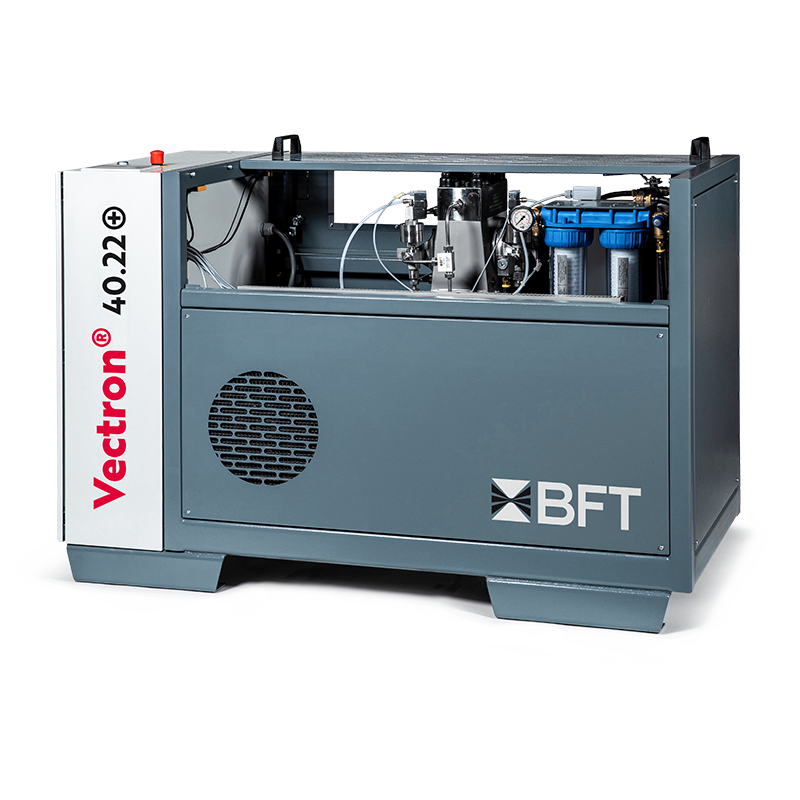

High-Pressure Pump BFT VECTRON
- Electric power: 22 kW / 30 hp
- Max pressure level: 3800 bar
- Max output: 3.5 l/min
- Dimensions: 800 x 1750 x 1200 mm (length, width, height)
- Weight: 900 kg
- Fuse recommendation: 125 A
- Standard water cooling, optional oil-air cooling
